Bellman-Ford Algorithm

Abstract

---

• Algorithm that finds the shortest paths from a source node to all other nodes in a weighted Graph, even when the graph contains negative edge weights
• Particularly useful for detecting negative cycles and finding arbitrage opportunities

Key Concepts

---

Edge Relaxation

• Definition: The process of checking if the current known path to node v can be improved by going through node u
• Formula: If distance[u] + weight(u,v) < distance[v], then update distance[v] = distance[u] + weight(u,v)
• Intuition: Like releasing tension in the path - making it shorter and more efficient

Edge Weight Modifications

Modifying all edge weights preserves shortest paths in one case:

• Multiplying by a constant C > 0:
  • If P is the shortest path in G with weight W
  • In G' (with all weights × C), P’s weight becomes W × C
  • P remains shortest because all paths are scaled proportionally

Note: Adding a constant C > 0 does NOT preserve shortest paths because:

• The number of edges in a path affects the total additional weight
• A path with more edges gets more weight added
• This can change which path is shortest

Finding Longest Paths

Bellman-Ford can be modified to find the longest path in a directed graph with positive weights:

• Negate all edge weights
• Run Bellman-Ford
• The shortest path in the modified graph is the longest path in the original graph

Note: This only works for directed graphs without cycles (DAGs) because:

• In a graph with cycles, the longest path might be infinite
• Bellman-Ford can detect negative cycles, which would indicate an infinite longest path

The Algorithm

1. Initialise distance to source node as 0, all others as infinity
2. Repeat $|V|-1$ times (where $|V|$ is the number of vertices):
   • For each edge (u,v) with weight w: If distance[u] + w < distance[v], update distance[v]
3. Optional: Check one more time to detect negative cycles

Why |V|-1 iterations?

The longest possible path without cycles in a graph with $|V|$ vertices has $|V|-1$ edges. Therefore, $|V|-1$ iterations are sufficient to find the shortest paths if no negative cycles exist.

Invariant

After k iterations of the outer loop, for any node v, if there exists a shortest path from source to v that uses at most k edges, then distance[v] has the correct shortest path distance. This invariant helps prove the algorithm’s correctness:

• Base case: After 0 iterations, only source node has correct distance which is 0
• Inductive step: If all shortest paths using at most k edges are correct, then all shortest paths using at most k+1 edges will be correct in the next iteration
• Termination: After $|V|-1$ iterations, all possible paths have been considered

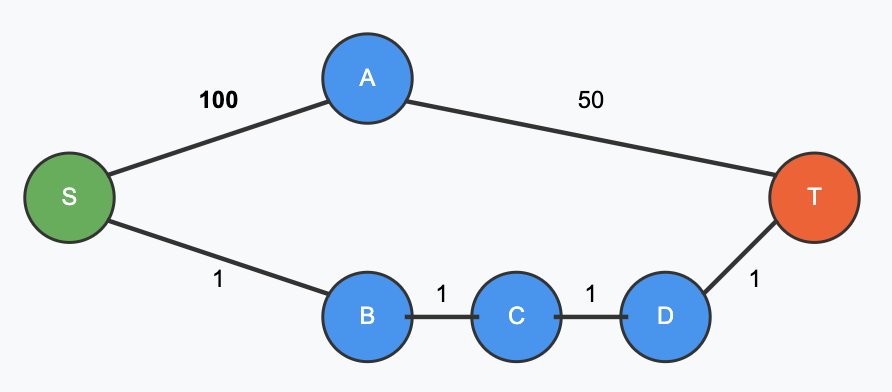

Note: A node within k hops might be reached through a longer path with smaller total weight as shown above, so we must consider the number of edges in the shortest path, not just any path.

Negative Edges vs. Negative Cycles

• Negative edges: Individual connections with negative weights (Bellman-Ford can handle these)
• Negative cycles: Cycles where the sum of all edge weights is negative (Bellman-Ford cannot find shortest paths if these exist)
• Cycle detection: If any distance can still be improved after $|V|-1$ iterations, a negative cycle exists

Complexity

---

• Time complexity: $O(|V|\times |E|)$ where $|V|$ is the number of vertices and $|E|$ is the number of edges
• Space complexity: $O(|V|)$ to store the distance array

Applications

---

Network Routing

• Finding optimal paths in communication networks
• Particularly useful when network conditions can result in negative weights (e.g., certain routing protocols)
• Key Applications:
  • Distance Vector Routing Protocols:
    • RIP (Routing Information Protocol)
    • Border Gateway Protocol

Arbitrage Detection

• Identifying profit opportunities in currency exchange markets
• Setup:
  • Nodes represent currencies
  • Edges represent exchange rates (using negative logarithm of rates)
  • Negative cycles indicate risk-free profit sequences

Comparison with Other Algorithms

---

vs. Dijkstra’s algorithm

• Bellman-Ford is slower $O(VE)$ vs $O(E+VlogV)$
• Bellman-Ford handles negative edges, Dijkstra’s doesn’t
• Both find shortest paths in weighted graphs

Implementation Considerations

---

• Always runs in worst-case O(VE) time
• Particularly useful when negative edges are present
• Can be modified to reconstruct the actual paths in addition to distances

Bellman-Ford on Trees

For a tree graph, Bellman-Ford can be optimised to a single pass:

# Process vertices in BFS order
for each vertex u in BFS order:
    for each edge e = (u -> v):
        relax(e)

This works because:

• Trees have exactly one path between any two vertices
• No cycles exist in a tree
• BFS order ensures vertices are processed in order of increasing distance
• By the time we relax edge (u,v), distance[u] is already correct

Complexity improves from $O(|V|\times |E|)$ to $O(|E|)=O(|V|)$ for trees.

Tree Example 🌳

Consider this tree with edge weights:

    A
   / \
  2   5
 /     \
B       C
|       |
1       4
|       |
D       E

BFS edge labels:

• (A→B) weight 2
• (A→C) weight 5
• (B→D) weight 1
• (C→E) weight 4

Initial distances: dist[A]=0, all others = ∞

One-pass Bellman-Ford in BFS order:

Process A:

• Relax (A→B): dist[B] = 2
• Relax (A→C): dist[C] = 5

Process B:

• Relax (B→D): dist[D] = 2+1 = 3

Process C:

• Relax (C→E): dist[E] = 5+4 = 9

Process D, E (no outgoing edges)

Final distances from A:

• dist[A] = 0
• dist[B] = 2
• dist[C] = 5
• dist[D] = 3
• dist[E] = 9

The algorithm works because in a tree with BFS ordering, a vertex’s correct distance is established before processing its children.

This is much more efficient than the standard Bellman-Ford algorithm, which has a time complexity of $O(V\times E)=O(V^2)$ on a tree.

Currency Exchange Example

Consider a currency exchange network with three currencies: USD, EUR, and GBP. The exchange rates are:

• USD → EUR: 0.85
• EUR → GBP: 0.90
• GBP → USD: 1.30

To find arbitrage opportunities:

1. Convert rates to negative logarithms (to convert multiplication to addition)
2. Run Bellman-Ford
3. If a negative cycle is found, it represents a profitable trading sequence

In this case, converting 100 USD → EUR → GBP → USD would result in: 100 × 0.85 × 0.90 × 1.30 = 99.45 USD This is not profitable, so no negative cycle exists in this example.

References

---

• 4.4 Bellman Ford Algorithm - Single Source Shortest Path - Dynamic Programming - YouTube
